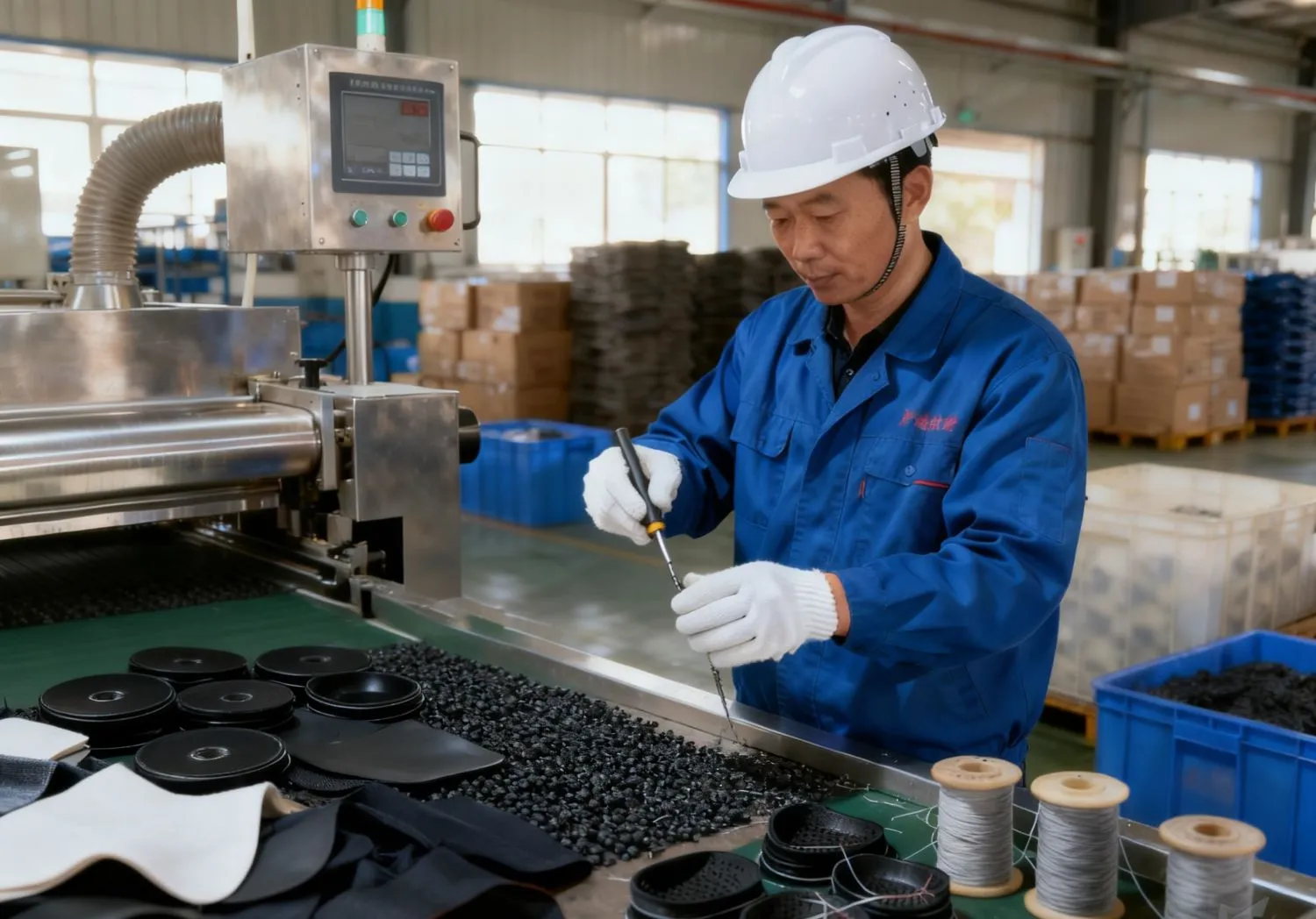

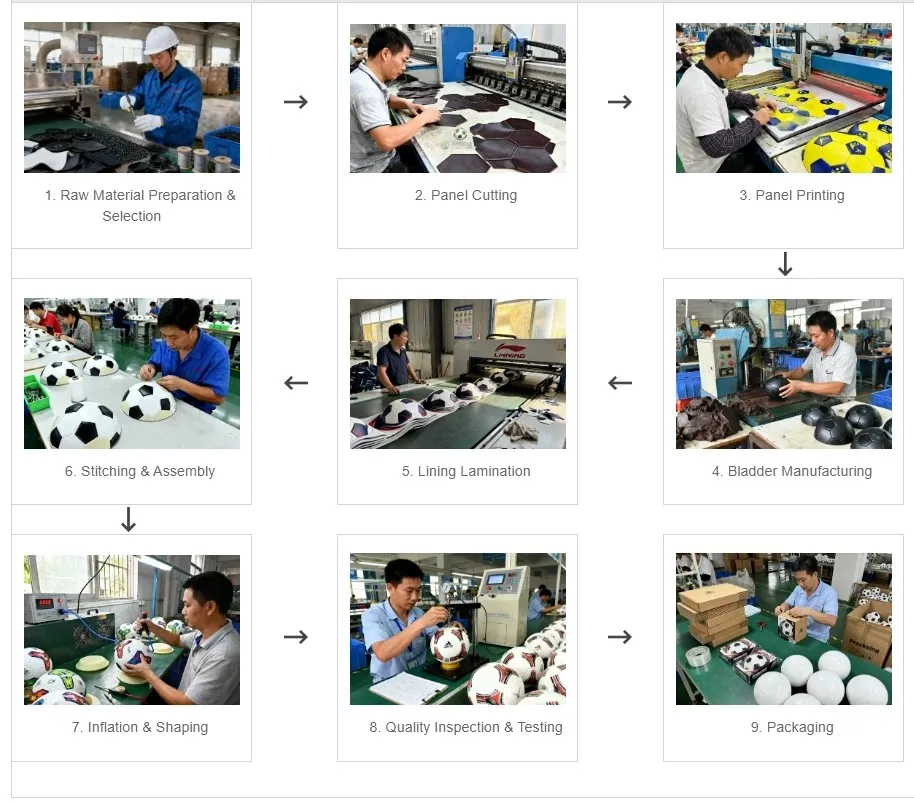

Process 1. Raw Material Preparation & Selection

Key Processes:

Selecting high-quality raw materials for the outer casing (typically synthetic leather or polyurethane), inner lining, and bladder (butyl, natural latex, or carbon latex).

Main Equipment:

Material Testing Equipment.

Major Problems:

Substandard material quality affecting ball performance and durability, and material batch variations.

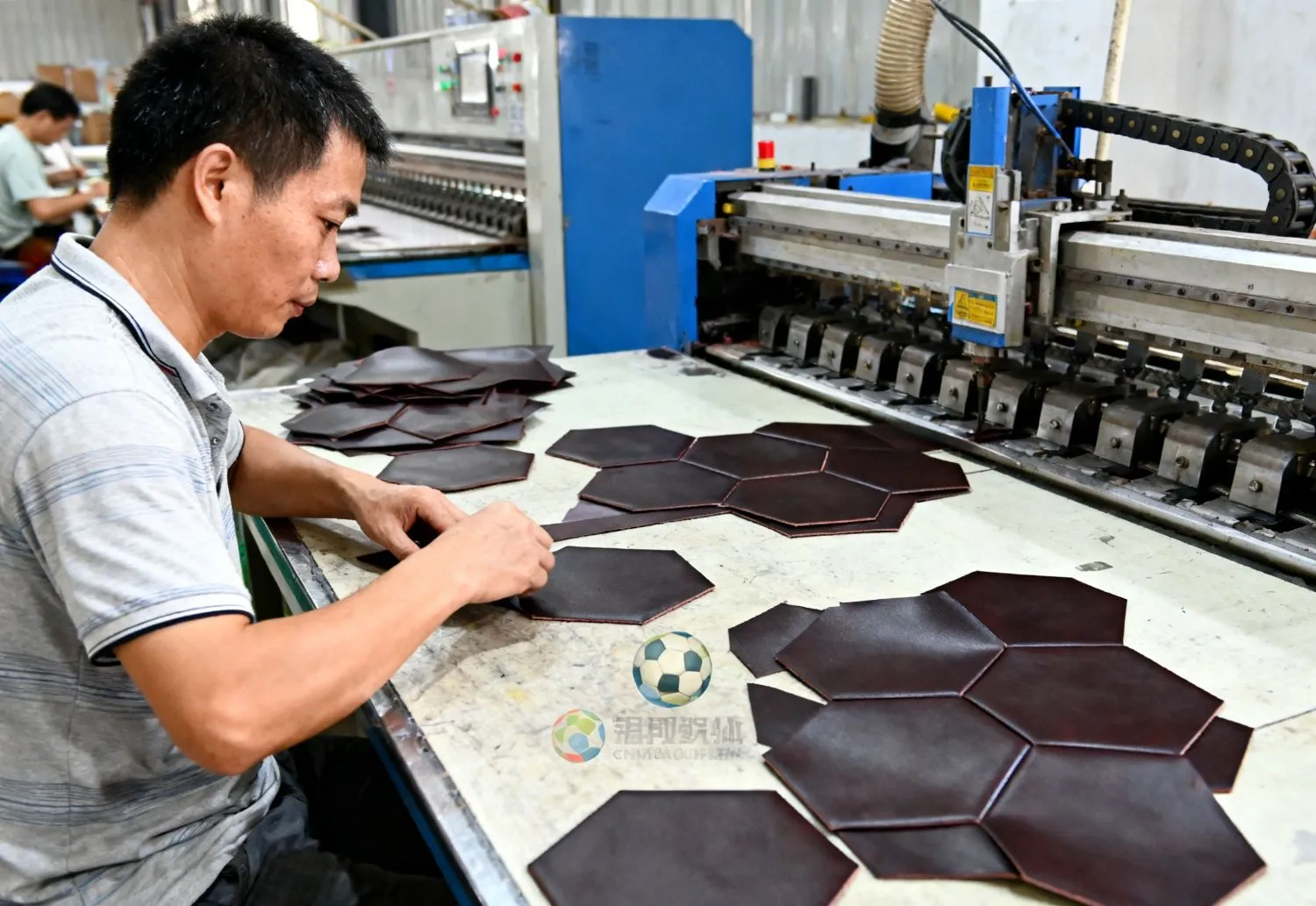

Process 2. Panel Cutting

Key Processes:

Precisely cutting the outer casing material (typically synthetic leather) into hexagonal and pentagonal panels required for the soccer ball using a die-cutting machine.

Main Equipment:

Die-cutting Machine, Punching Machine.

Major Problems:

Inaccurate panel dimensions affecting ball roundness, uneven cutting edges, material waste.

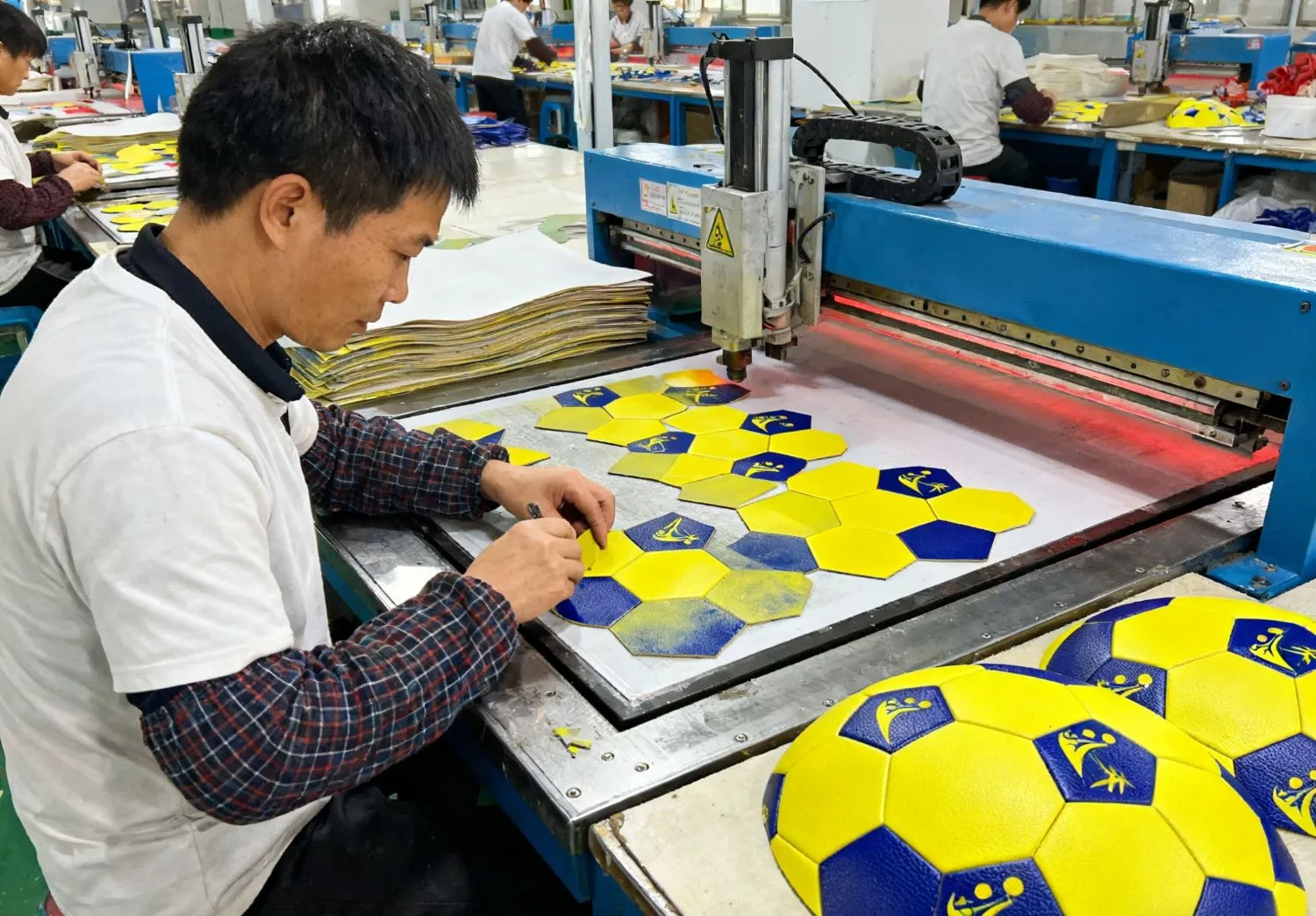

Process 3. Panel Printing

Key Processes:

Silk-screening logos, patterns, and designs onto the cut panels.

Main Equipment:

Silk-screen Printing Machine, Drying Equipment.

Major Problems:

Unclear or misaligned printed patterns, poor ink adhesion leading to peeling, uneven color.

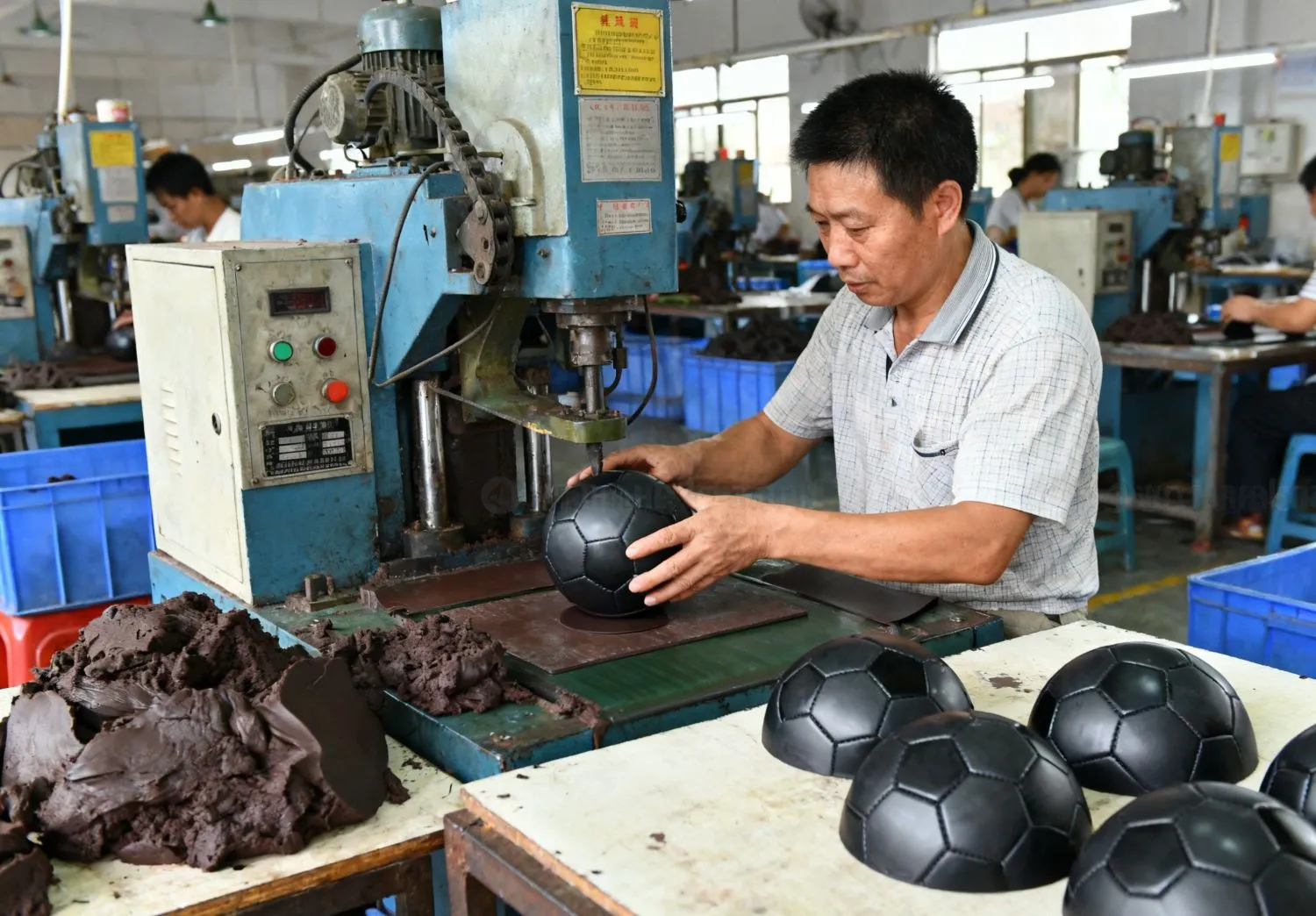

Process 4. Bladder Manufacturing

Key Processes:

Manufacturing the inner bladder of the soccer ball, typically made from butyl rubber or natural latex, to ensure good air retention and elasticity.

Main Equipment:

Rubber Mixer, Vulcanizing Machine, Molds.

Major Problems:

Poor bladder air retention leading to air leakage, material defects causing bladder rupture, and inconsistent dimensions.

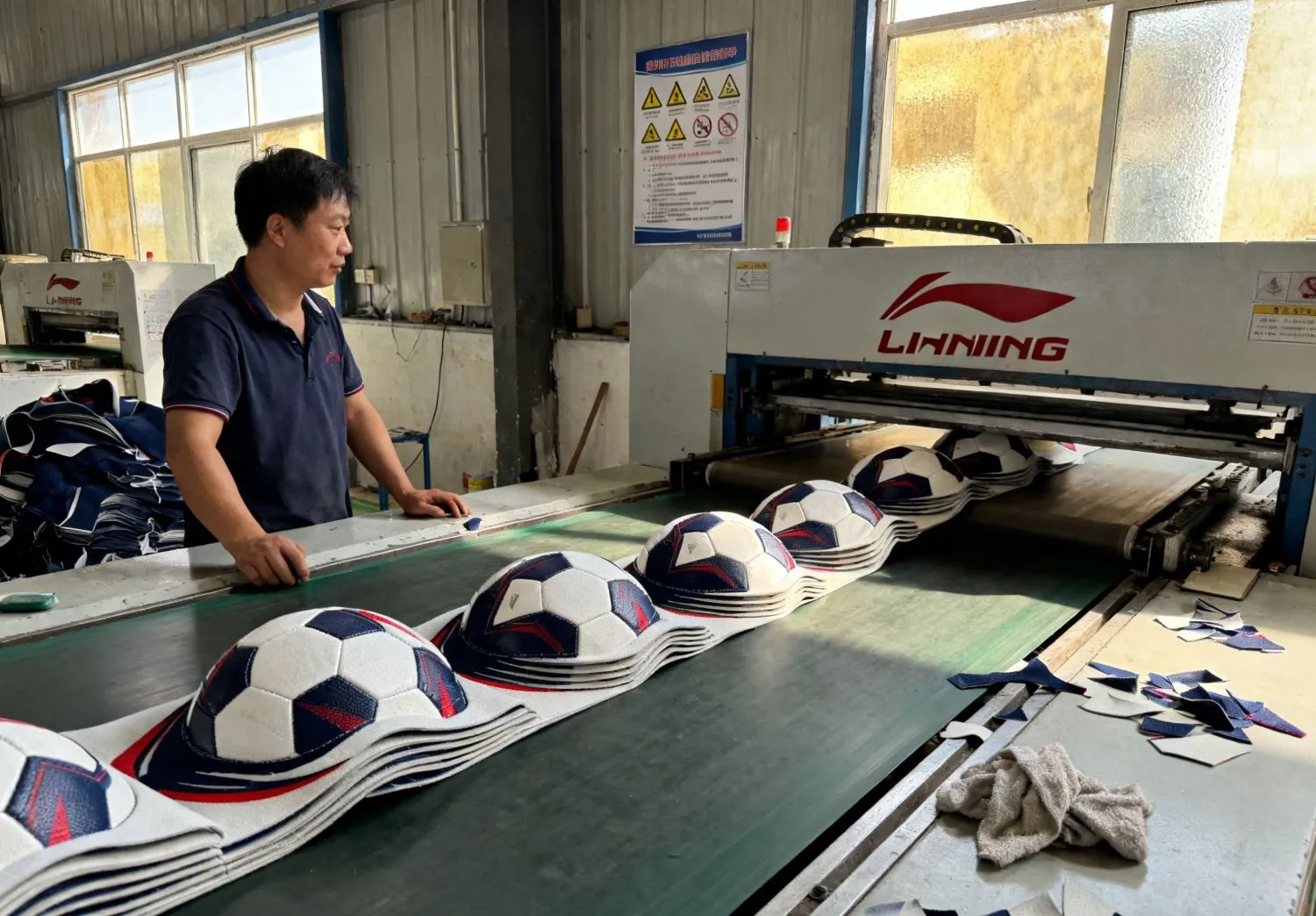

Process 5. Lining Lamination

Key Processes:

Laminating multiple layers of textile (e.g., cotton, polyester) with the outer casing panels to enhance the ball's strength, shape retention, and touch.

Main Equipment:

Laminating Machine.

Major Problems:

Poor lamination leading to delamination, bubbles or wrinkles, misalignment of materials.

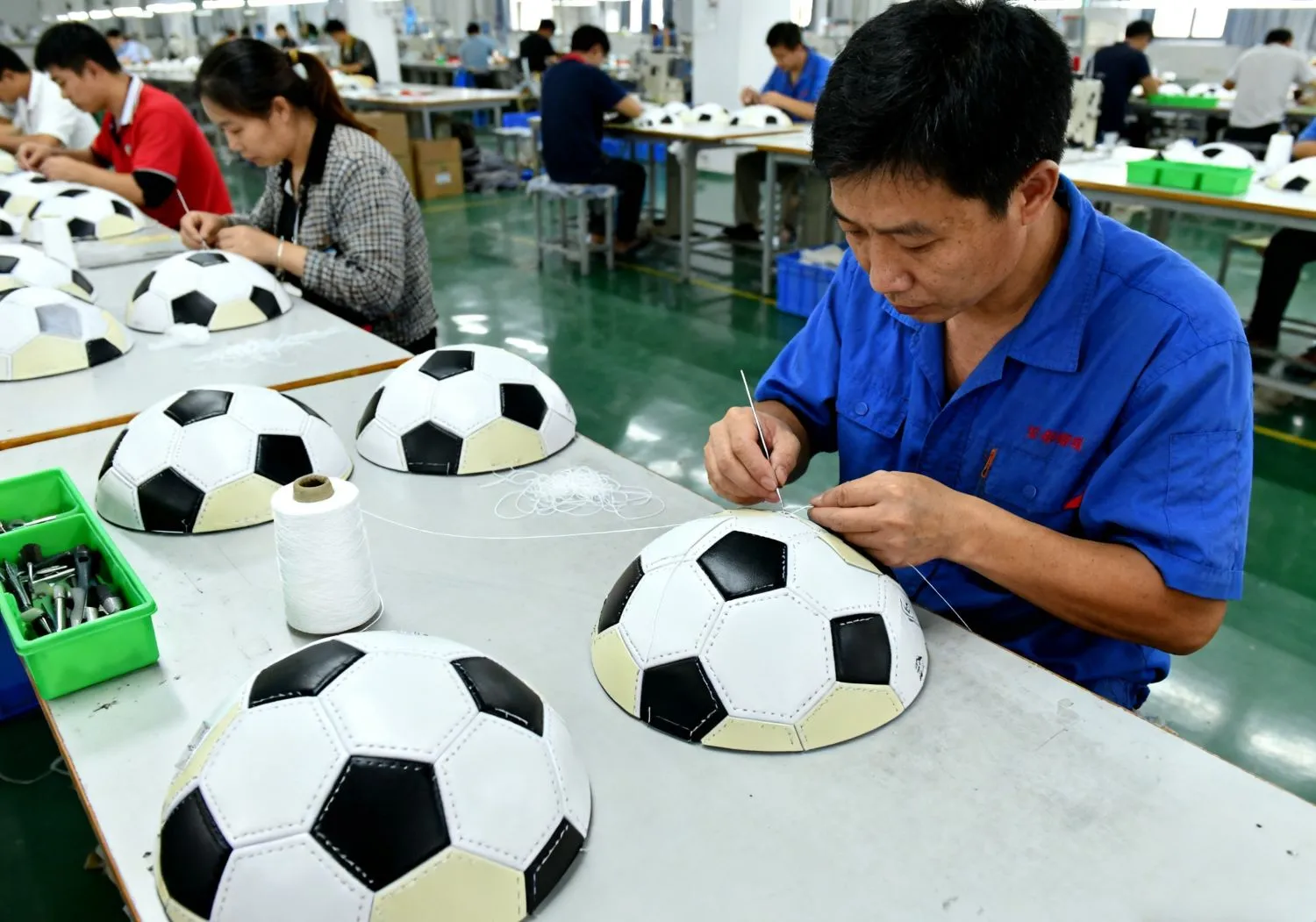

Process 6. Stitching & Assembly

Key Processes:

Hand-stitching or machine-stitching the printed panels together to form the outer shape of the soccer ball. The bladder and air valve are assembled during this stitching process.

Main Equipment:

Industrial Sewing Machine, Stitching Jigs, Skilled Stitchers.

Major Problems:

Uneven or broken stitching, misalignment of panels affecting ball roundness, puncturing the bladder during stitching, and insufficient stitching strength.

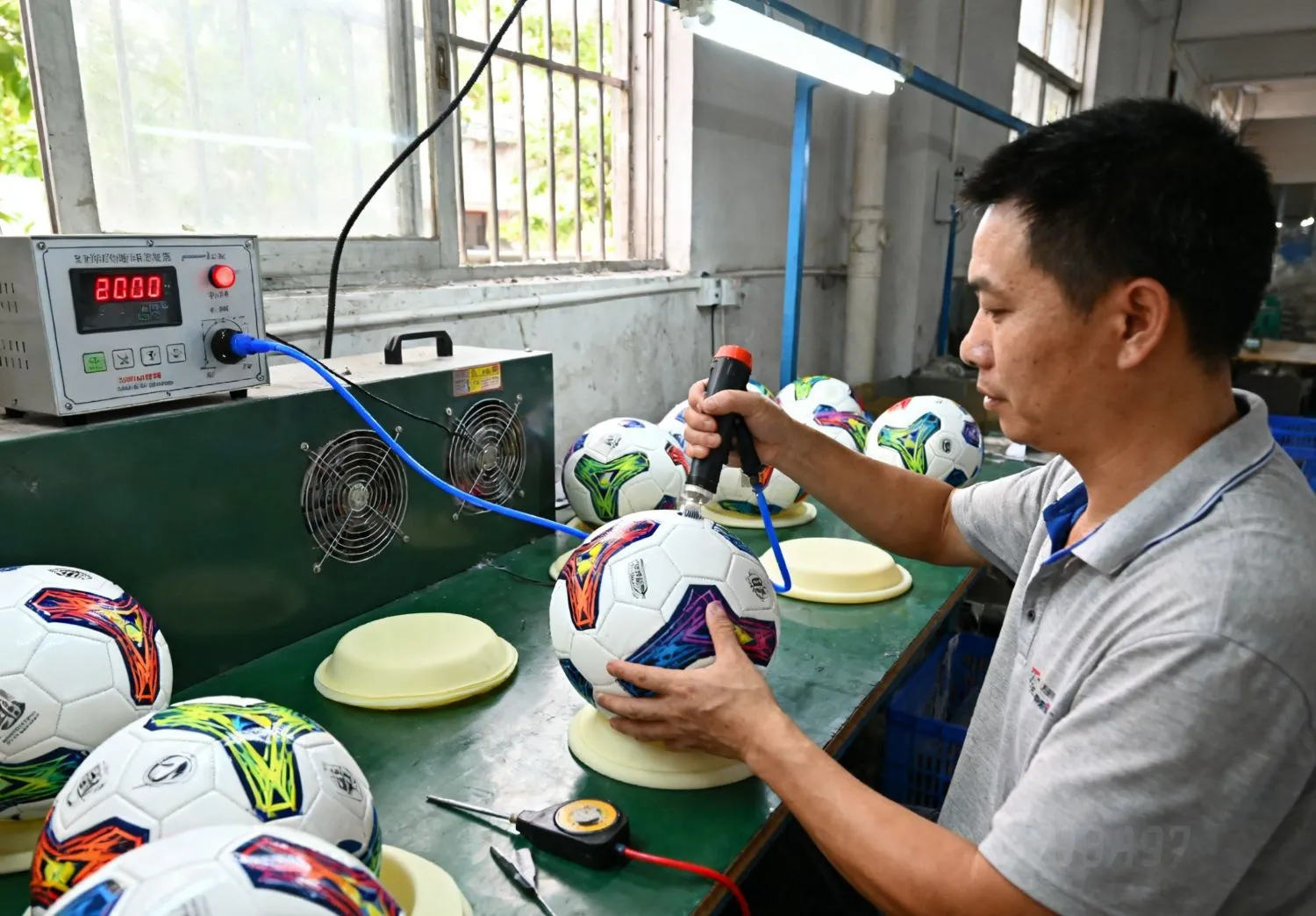

Process 7. Inflation & Shaping

Key Processes:

Inflating the stitched soccer ball to its standard pressure and allowing it to maintain its shape for a period to ensure roundness and dimensional stability.

Main Equipment:

Air Pump, Pressure Gauge, Shaping Racks.

Major Problems:

Inaccurate inflation pressure affecting ball elasticity, insufficient shaping time leading to unstable shape, and air valve leakage.

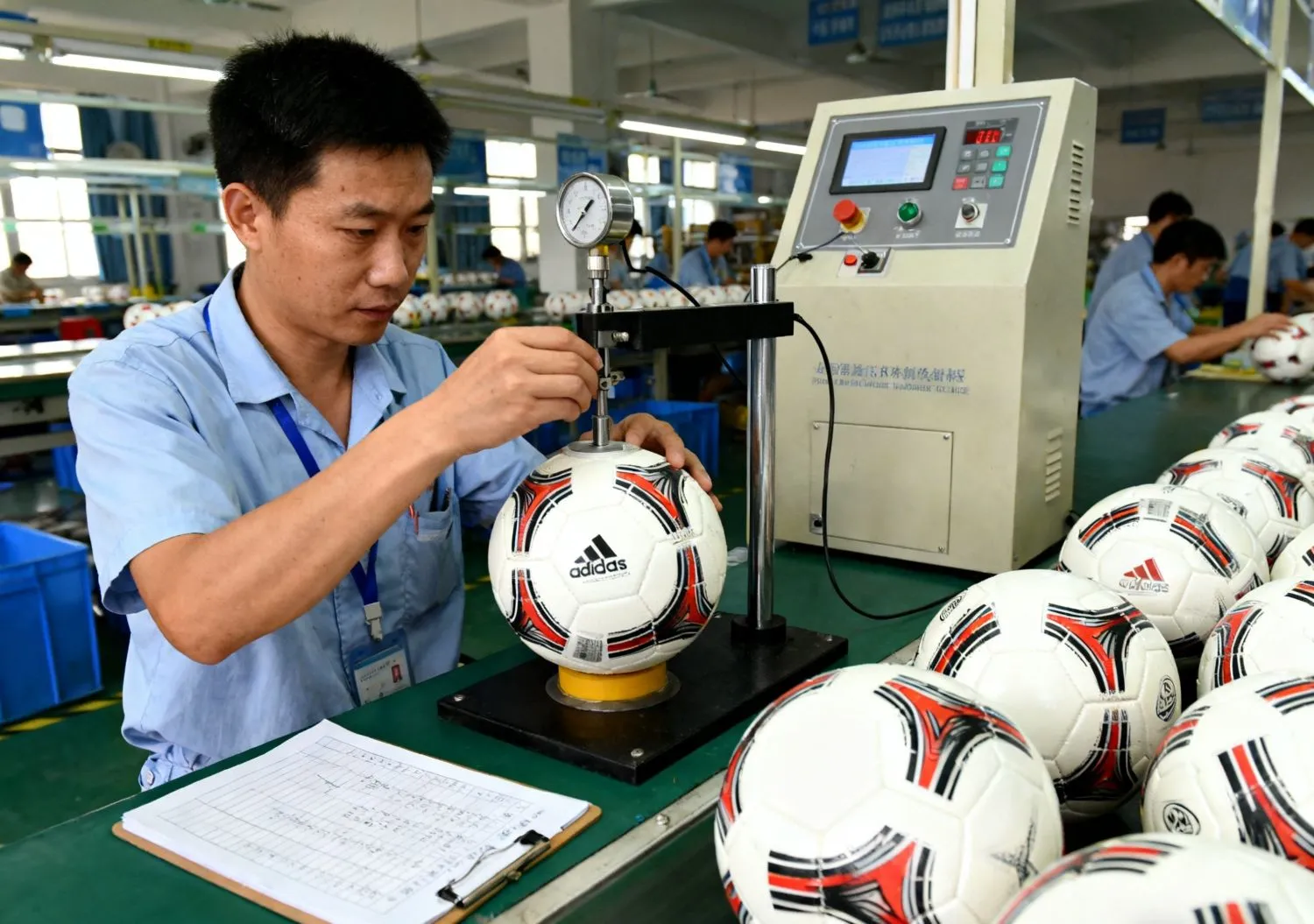

Process 8. Quality Inspection & Testing

Key Processes:

Conducting comprehensive quality inspections on finished soccer balls, including weight, roundness, circumference, rebound height, air retention, abrasion resistance, etc., to ensure compliance with FIFA or relevant standards.

Main Equipment:

Weight Scale, Roundness Tester, Rebound Tester, Air Retention Tester.

Major Problems:

Missing defective products, inconsistent inspection standards, human inspection errors, and inaccurate testing equipment calibration.

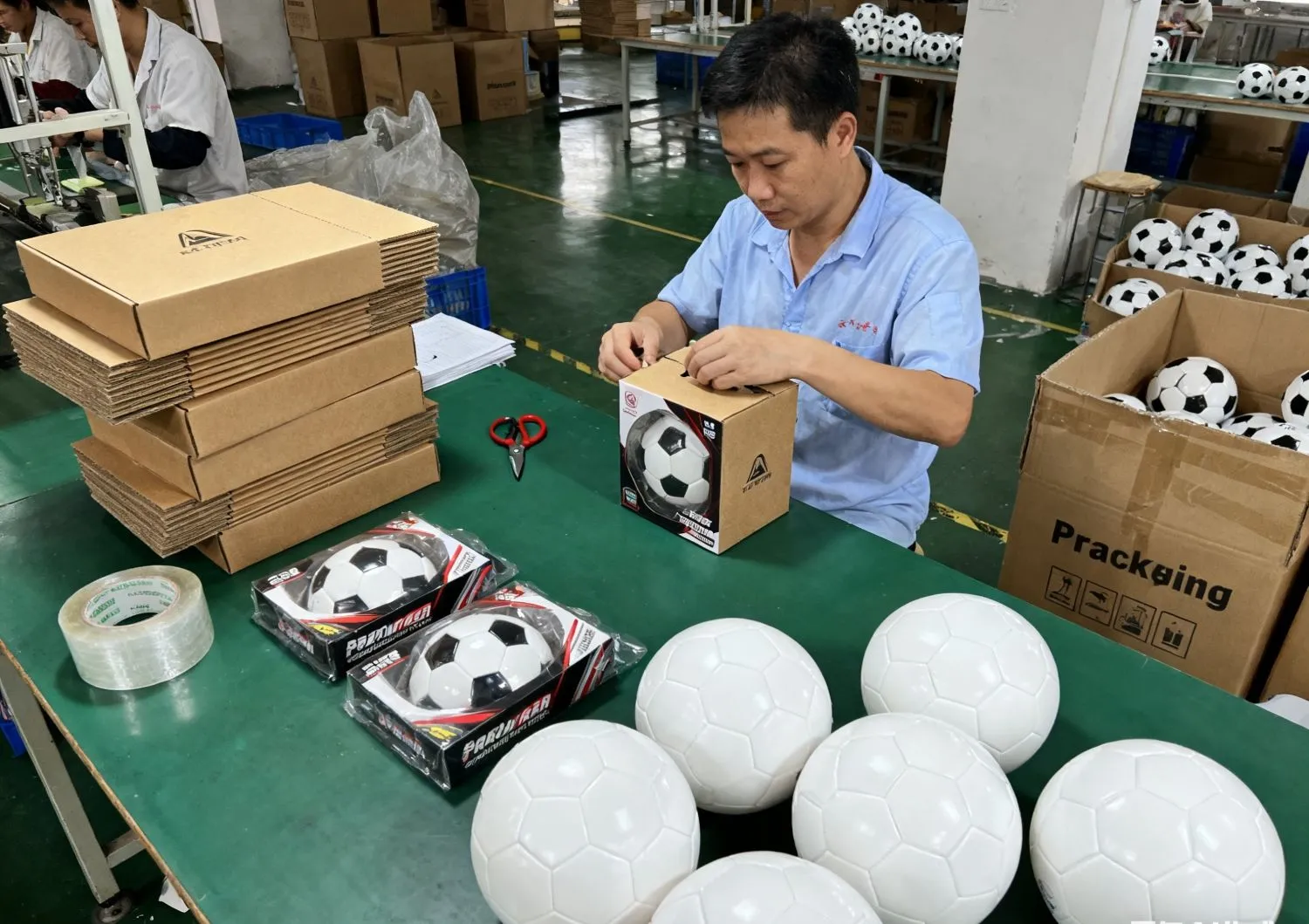

Process 9. Packaging

Key Processes:

Cleaning qualified soccer balls, then placing them into protective bags or boxes, labeling them, and preparing for shipment.

Main Equipment:

Cleaning Equipment, Packaging Machine, Label Printer.

Major Problems:

Inadequate packaging protection leading to transit damage, incorrect label information, and packaging not meeting customer requirements.
